TUBING TONGS & BUCKING UNITS

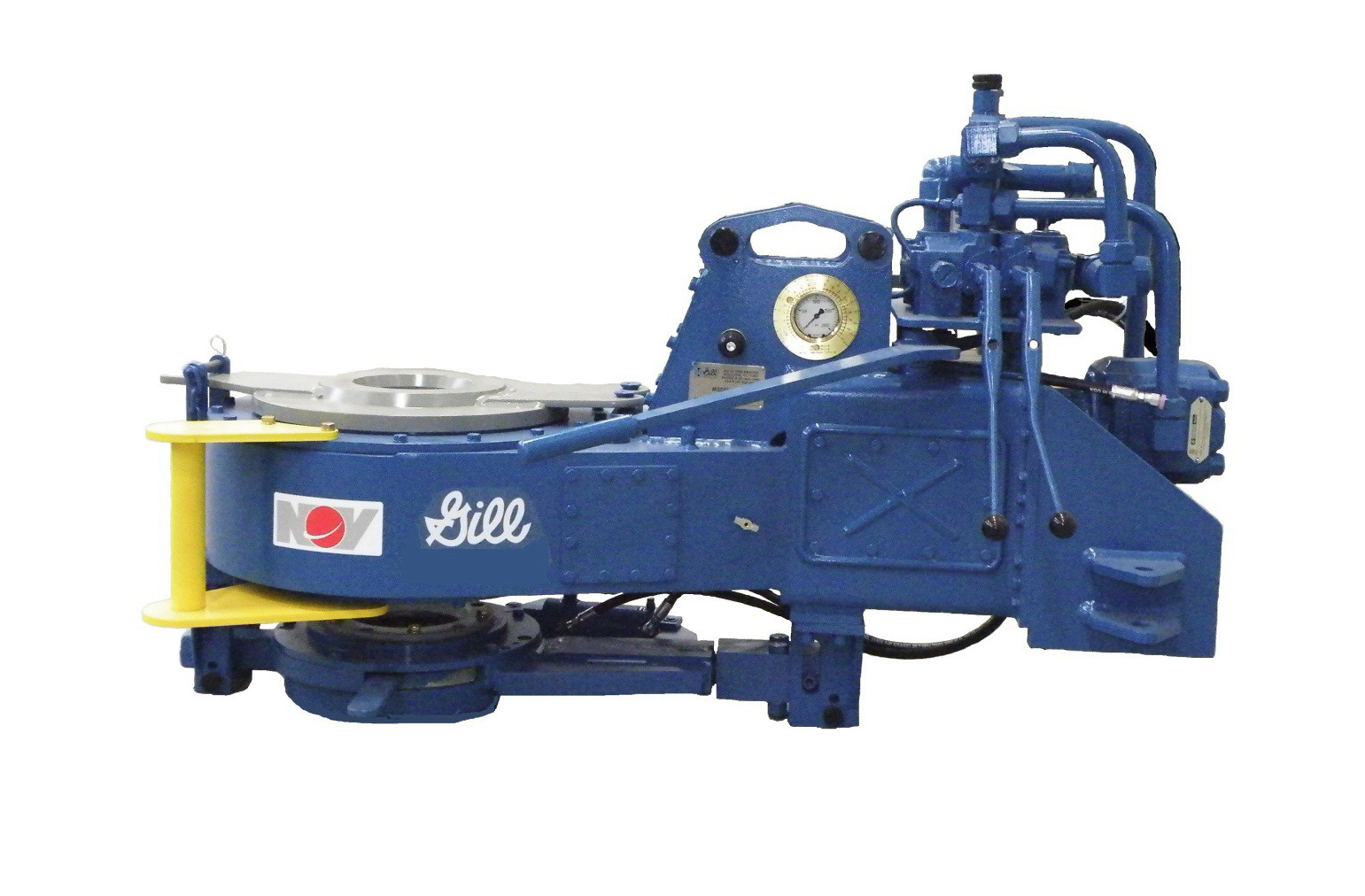

NOV-GILL MODEL 500:
- maximum standard torque of 6,000 ft-lbs at 2,000 PSI & 32 GPM (8,000 ft-lbs for the high torque)
- 126 RPM - high gear, 27 rpm - low gear
- enables operators to change gears during operation
- pressurized oil bath ensures quiet operation, less friction & maximum bearing life
- standard package includes lift ram, back-up assembly, transport rack & biting equipment
- tong includes safety handles, split guide bell, 3-position back-up air control
| |

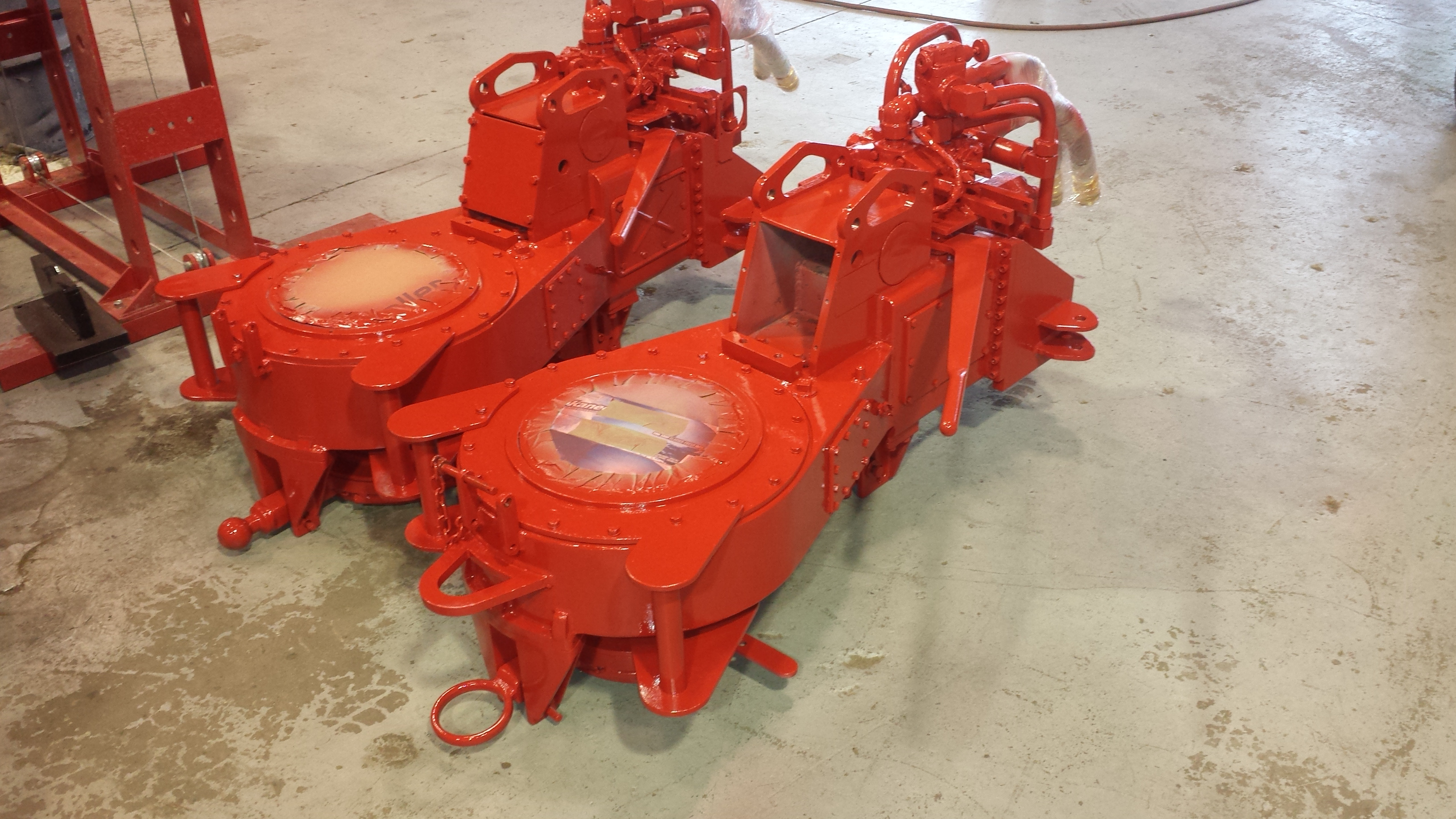

CARTER CT-93R:
- maximum standard torque of 6,000 ft-lbs at 2,000 PSI & 32 GPM (8,000 ft-lbs for the high torque)
- 126 RPM - high gear, 27 rpm - low gear
- enables operators to change gears during operation
- pressurized oil bath ensures quiet operation, less friction & maximum bearing life
- includes standard guide bell, 2-position (push-pull) back-up air control
| |

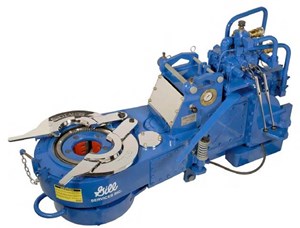

NOV-GILL MODEL-600
- maximum standard torque of 12,000 ft-lbs at 2,000 PSI & 32 GPM (15,000 ft-lbs for the high torque)
- 120 RPM - high gear, 18 RPM - lowgear (@ 39 GPM)
- enables operators to change gears during operation
- pressurized oil bath ensures quiet operation, less friction & maximum bearing life
- standard package includes lift ram, back-up assembly, transport rack & biting equipment (2 3/8" - 2 7/8")
- tong includes safety handles, split guide bell, 3-position back-up air control
| |
NOV-GILL MODEL 700:
- 2 3/8" - 10 3/4" range
- high gear torque: 2800 ft-lbs, low gear torque: 20,000 ft-lbs (@ 2000 PSI & 55 gpm
- enables operators to change gears during operation
- pressurized oil bath ensures quiet operation, less friction & maximum bearing life
| |

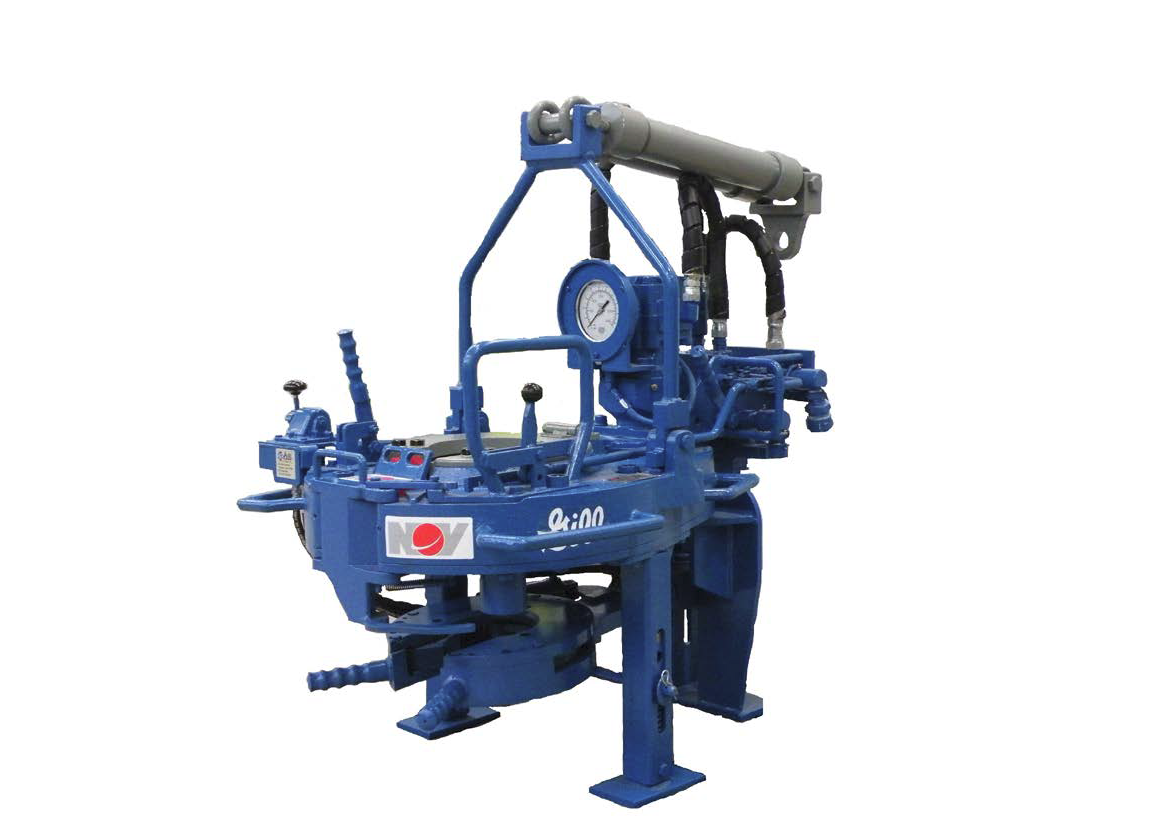

NOV-GILL MODEL 450:
- open face tubing tong with wrap-around biting system ensures positive grip
- maximum low-gear standard torque of 5440 ft-lbs @ 2000 psi./35 GPM
- high gear - 93 RPM @ 35 GPM, low gear - 27 RPM @ 35 GPM
- gear driven, chain-less, with planetary gear transmission
- 3-jaw back-up biting system allows for greater range
| |

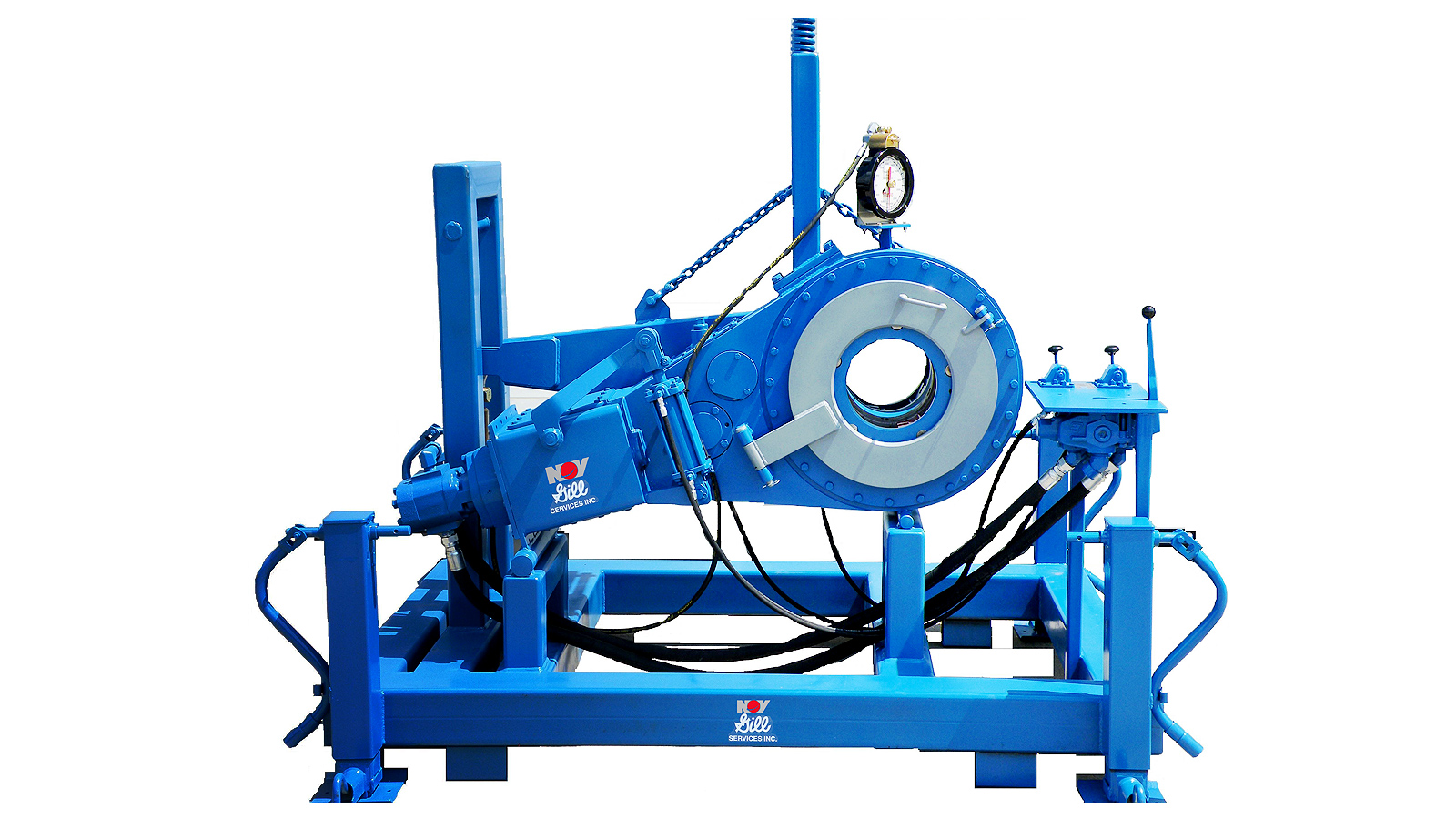

NOV-GILL BUCKING UNIT (500, 600, 700):
- manual control jacks to change center-line of pipe
- overhead hanger trolley & rear stanchion for hydraulic load-cell torque monitoring
- air shift controlled high/low operation & back-up
- available in models 500, 600 & 700 with an overall working range of 1 1/4" - 10 3/4"
- maximum standard torque range of 6000 ft-lbs to 20,000 ft-lbs
ROD TONGS
| |
CARTER M-SERIES ROD TONG:
- tested & proven BJ style is interchangeable with most other manufactured rod tongs
- includes spring hanger, front end controls, one set of biting equipment
HYDRAULIC DRIVE/TORQUE OPTIONS
| |

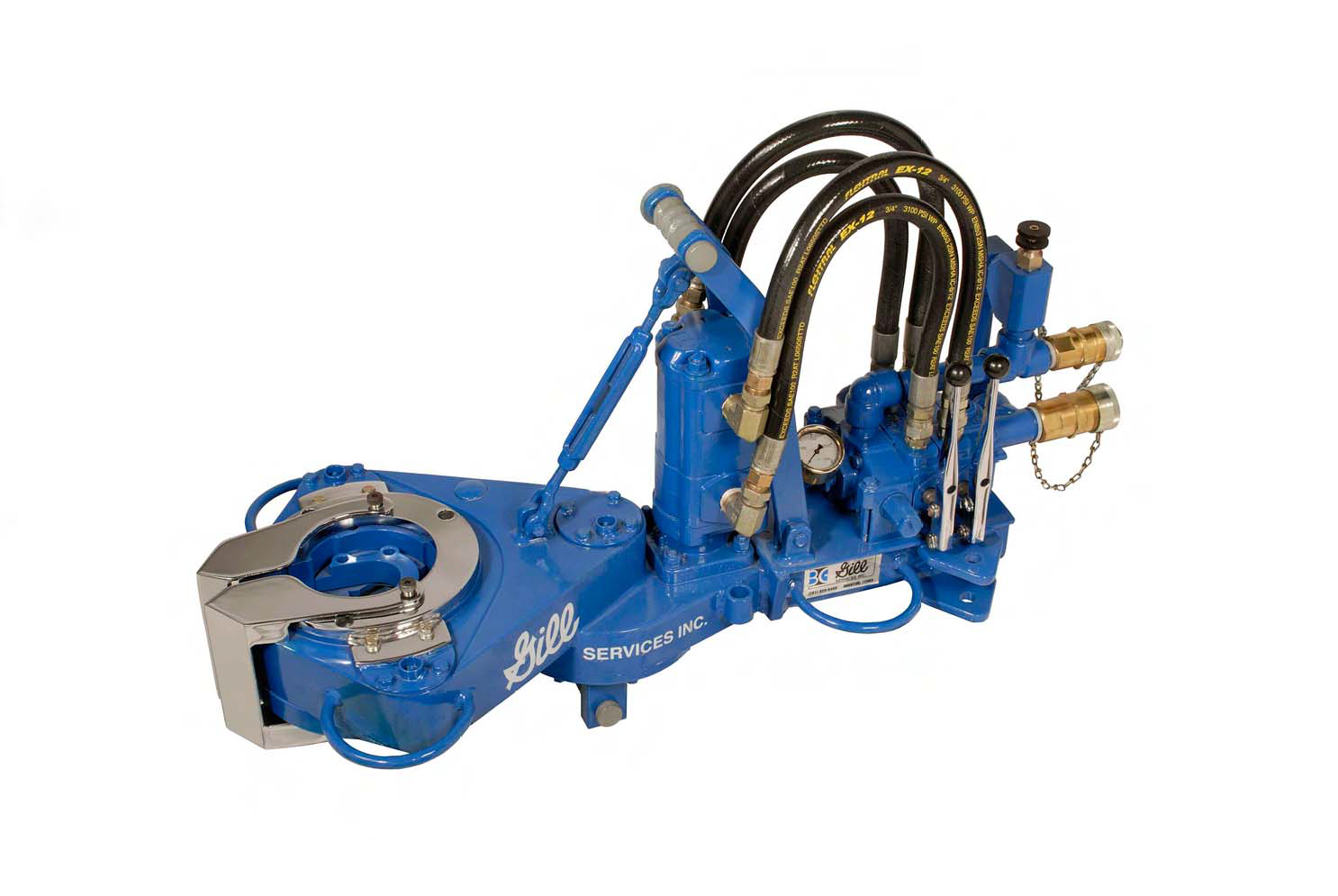

NOV-GILL MODEL-300
- utilizes the BJ-style inner-ring & back-up assemblies
- dual range motor provides 3-speed performance with powerful low end torque with high range RPM
- low range - 2366 ft-lbs @ , mid-range - 1341 ft-lbs, high range - 1025 ft-lbs
- includes torque control valve
- uses standard commercial valve controls
- These units are some of the more common makes & models we distribute but please do not hesitate to contact us with any enquiries you might have in regards to alternative manufacturers or styles.
